| ::: SI3500 ::: |
|
사양 (Specifications)
1. Analog Input & A/D Conversion
| 로드셀 인가 전압 | 10V DC±5%, 320㎃ |
| 빕력 감속 | 0.45μV/D |
| 영점 조정범위 | -0.6mV~+42.0mV COMBINATION OF 6BIT DIP SWITCH |
| 최대로드셀 입력전압 | Max. 32mV |
| 입력노이즈 | +0.6㎶ P.P or LESS |
| 입력임피이던스 | 10Mℓ(Min.) |
| A/D 변환 방법 | TYPE:KUAL SLOPE TYPE RESOLUTIONl1/65,000 COUNTS(16Bit) |
| 최대 하중표현 | +10% OF FULL CAPACITY |
| A/D 변환 속도 | 20회/Sec |
| 비직선성 | 0.01% OF FULL SCALE |
| 온도계수 | ZERO ±20PPM/℃ SPAN ±20PPM/℃ |
2. Digital part
|
표시기
|
12.7mm(1/2"), 7DIGITS HIGHLY BRIGHT FLUORESSCENT TURE SUB DISPLAY:7Segment 12DIGIT Red-FND SIZE:9.2(H) x 4.8(W)mm x 1Line |
|
부표시기
|
STEADY, ZERO, TARE, GROSS, SP1, SP2, RT x D |
|
소숫점위치
|
0, 0.0, 0.00, 0.000 |
|
KEY-BOARD
|
TEN-KEY, ZERO, TARE, RUN, STANDBY, NET/GROSS, S/N, P/N, SUB, QUANITITY, UNIT WEIGHT, SP1, SP2, FREE FALL, CLEAR, PRINT, ENTER |
|
EXTERNAL
|
OPTICAL-ISOLATOR |
|
INPUT
SIGNAL |
|
| 한눈의값 | x1, x2, x5, x10, x20, x50 |
| 최대표시값 | +550,000 |
| 뒷면 판넬 |
LOAD CELL INPUT:5PIN CONNECTOR REMOTE CONTROL:5PIN
TERMINAL 1. START, STOP, TAREM TARE RESET, NET/GROSS, ZERO, PRINT
CONTROL RELAY OUT:7PIN TERMINAL |
3. 일반 사양
|
데이터메모리
|
APPR, 약 10년 |
|
전원
|
100/117/120/220/240VAC, ± 10%, 50/60Hz (FACTORY PRESET) |
|
소비전력
|
약 30VA |
|
허용, 온도
|
-TEMPERATURE:-10℃∼+40℃(+14℉∼+104℉) HUMIDITY:85% Rh Max.(NON-CONDENSING) |
|
제품중량
|
NET:2.4kg Gross:3.1kg |
|

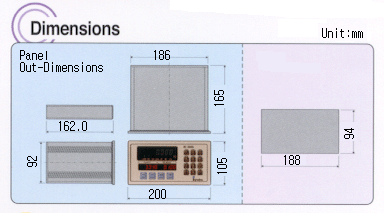

제품크기
|
200(W) X 175(D) X 105(H)mm 7.87(W) x 6.89(D)x4.33(H)inch |
|
유즈
|
250V/1A |
4. OPTIONS
|
OP1
|
Printer I/F : Centronics Parallel |
|
OP2
|
Analod Out : V - out(0~10V) |
|
OP3
|
Analod Out : I - out(4~20mA) |
|
OP4
|
Serial I/F : RS 422, RS485 |
|
OP5
|
BCD Out-put |
 |
 |
|
|||||||||||||||||||||||
